Truck Loading Platforms & Fall Protection Systems
Truck loading platforms and gangways give workers safe, OSHA-compliant access to load, unload, inspect, and maintain trucks at height. According to OSHA, employees working on surfaces 4 feet or higher in general industries require fall protection equipment to prevent injuries and fatalities. At Safe Harbor Access Systems, every truck loading platform and gangway we manufacture is designed to meet and exceed OSHA standards, keeping your workforce protected and your operations running.
We engineer truck fall protection systems for a wide range of vehicle types, including liquid tanker trucks, hopper trucks, pneumatic trucks, flatbed trucks, fuel trucks, dump trucks, garbage trucks, and ISO containers. Whether you operate a single loading spot or a multi-bay terminal, we build the right system for your application.
Truck Fall Protection Systems
Safe Harbor provides complete truck fall protection systems that address the specific hazards of working at elevation on and around commercial vehicles. Our access systems, loading platforms, and gangways are engineered to work with the truck types and configurations your facility handles daily.

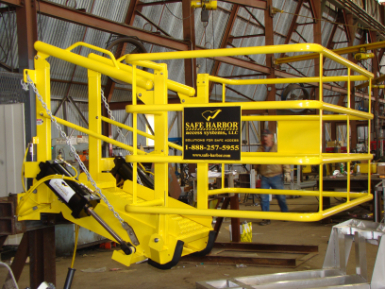

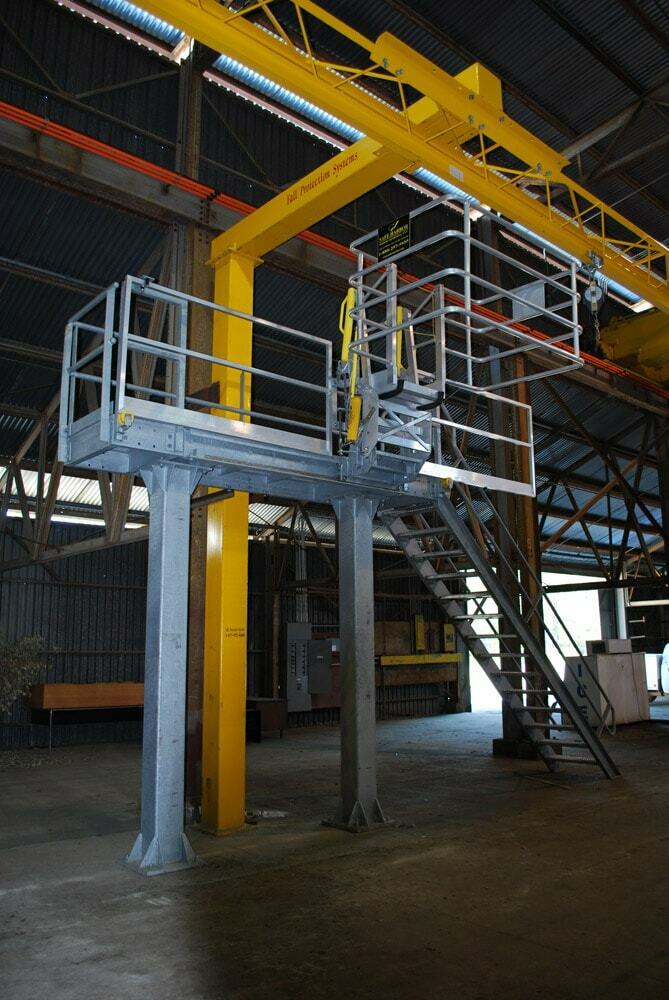

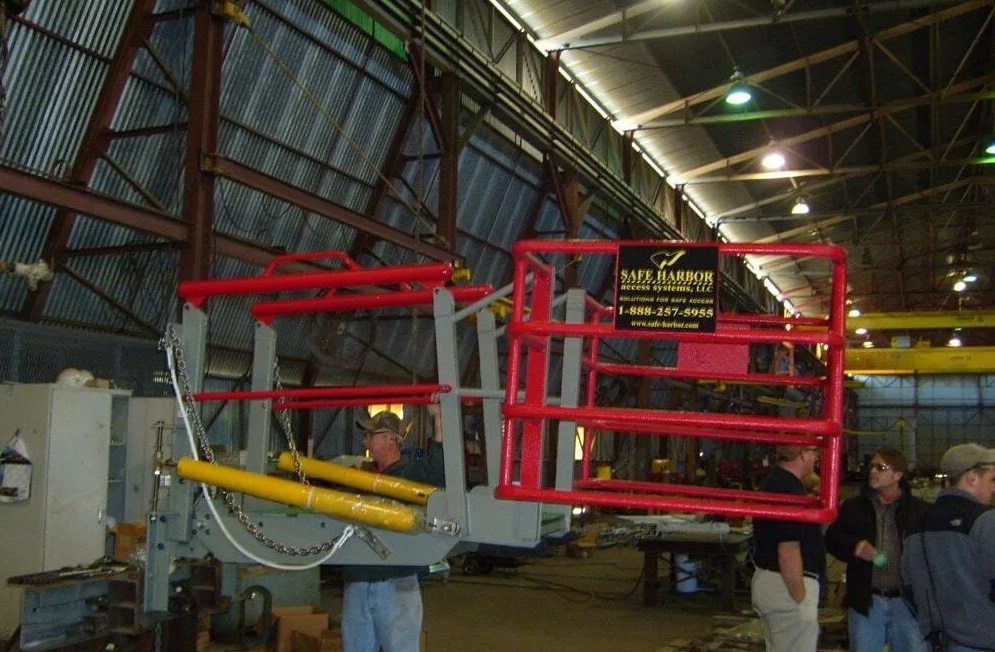

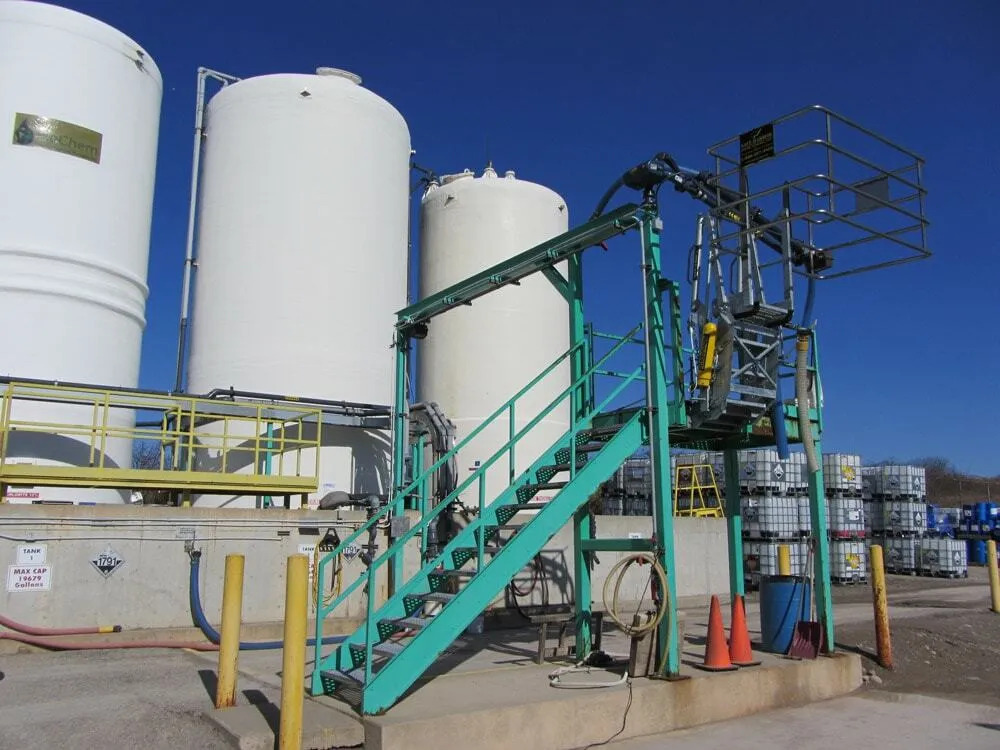

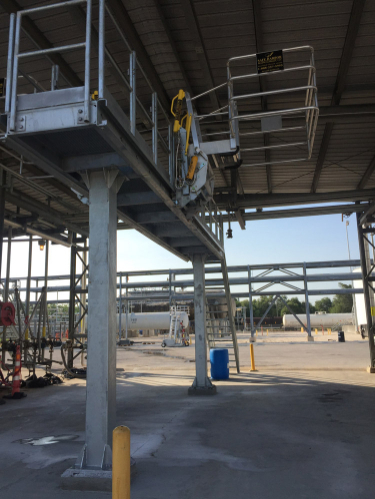

We manufacture single-access platforms for single-hatch trucks and multiple-access platforms for trucks with two or more hatches. In addition, our engineering team has designed and produced customized truck safety cages and safety enclosures for both single and multiple-hatch configurations, providing passive fall protection that does not require workers to wear personal fall arrest equipment.
Truck Loading Gangways

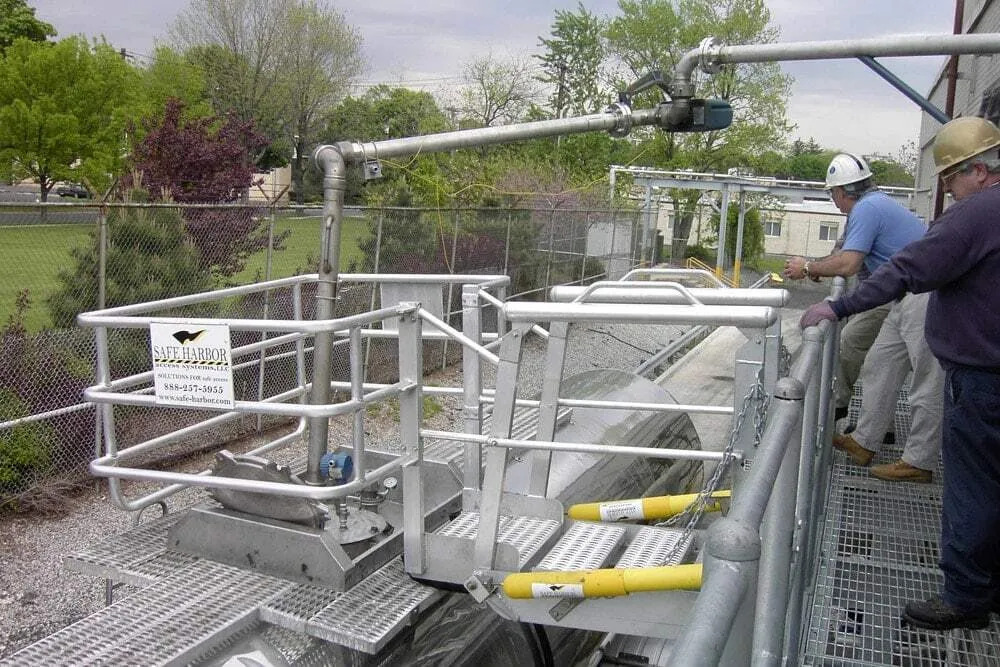

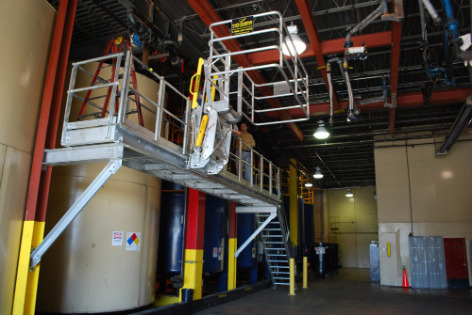

Truck loading gangways are the connection point between your fixed platform and the top of the vehicle. Selecting the right gangway type directly affects worker safety and operational speed. Safe Harbor offers several gangway styles to match your application:

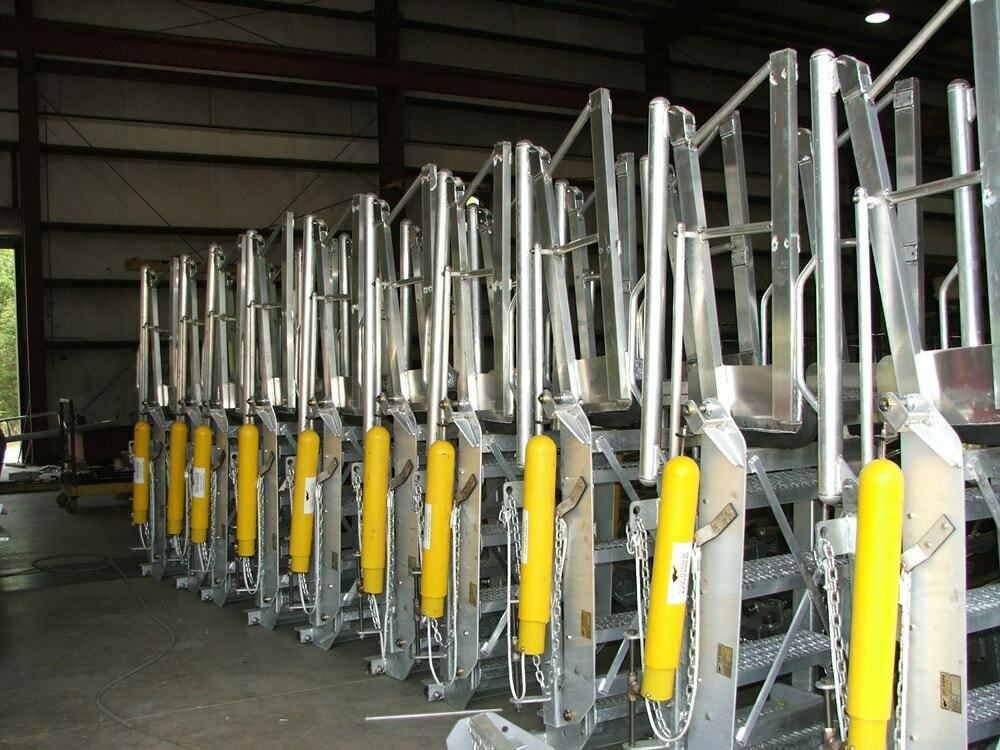

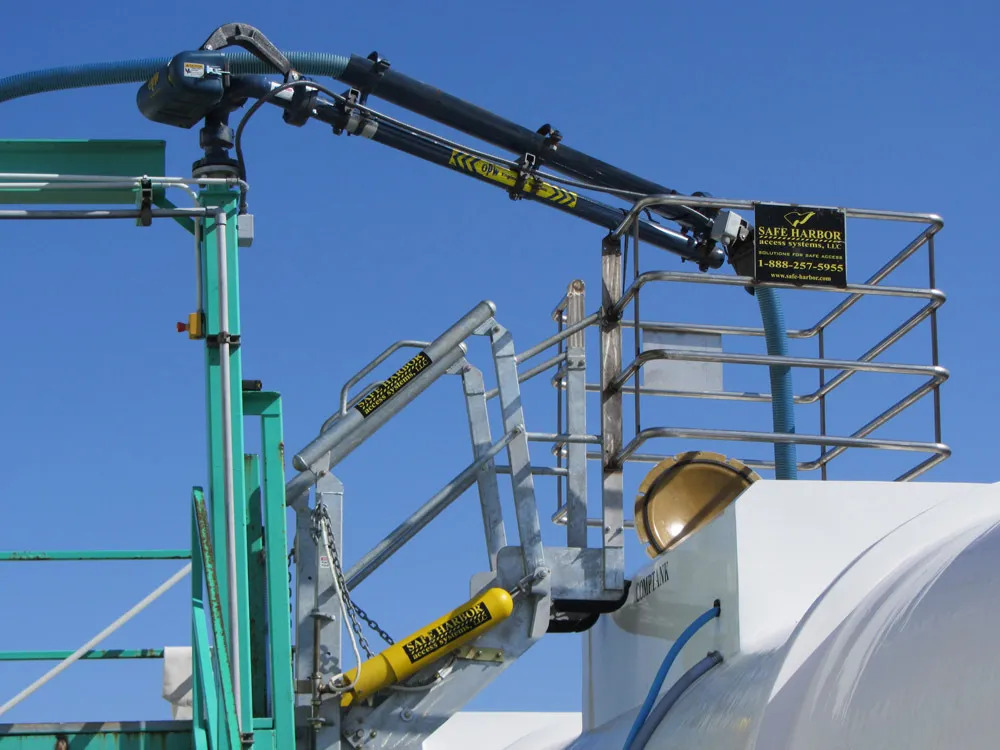

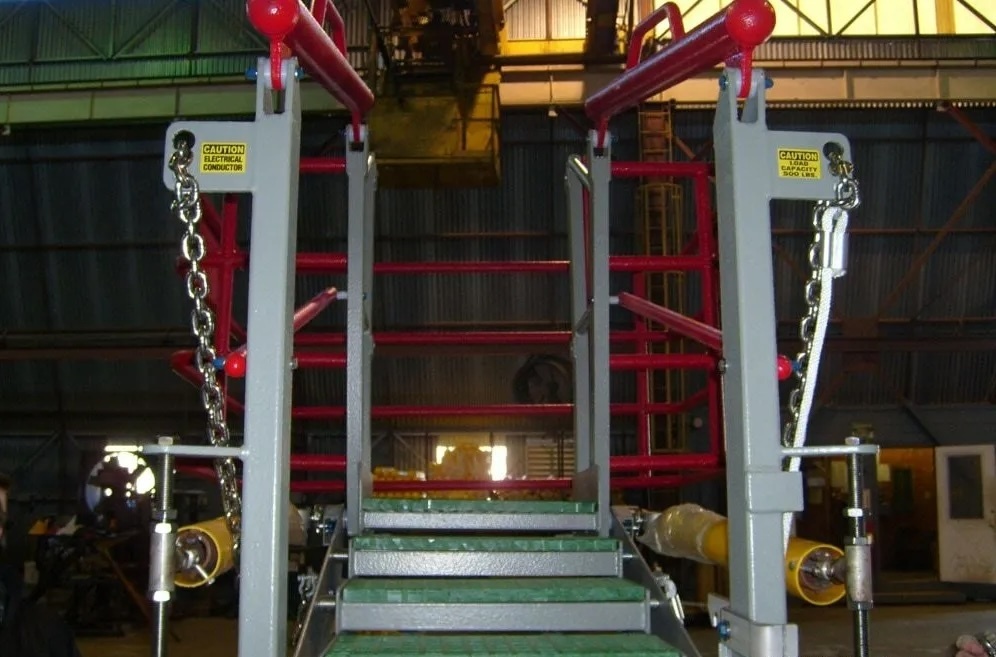

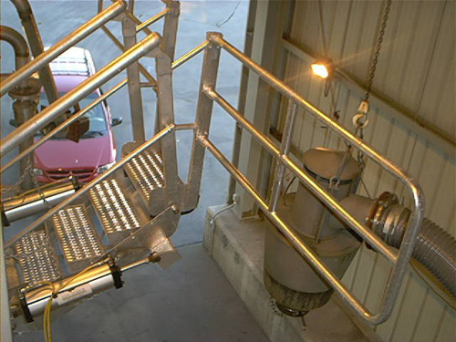

Self-leveling staircase gangways automatically keep treads level as the gangway angle changes, making them the preferred choice for accessing liquid tanker trucks that vary in height. Flat ramp gangways provide a stable, non-slip walking surface and are best suited for hopper trucks and vehicles where platform and vehicle height are consistent. Telescoping gangways feature an extending section that adjusts reach, which is ideal for applications where the distance between the platform and the truck hatch varies.

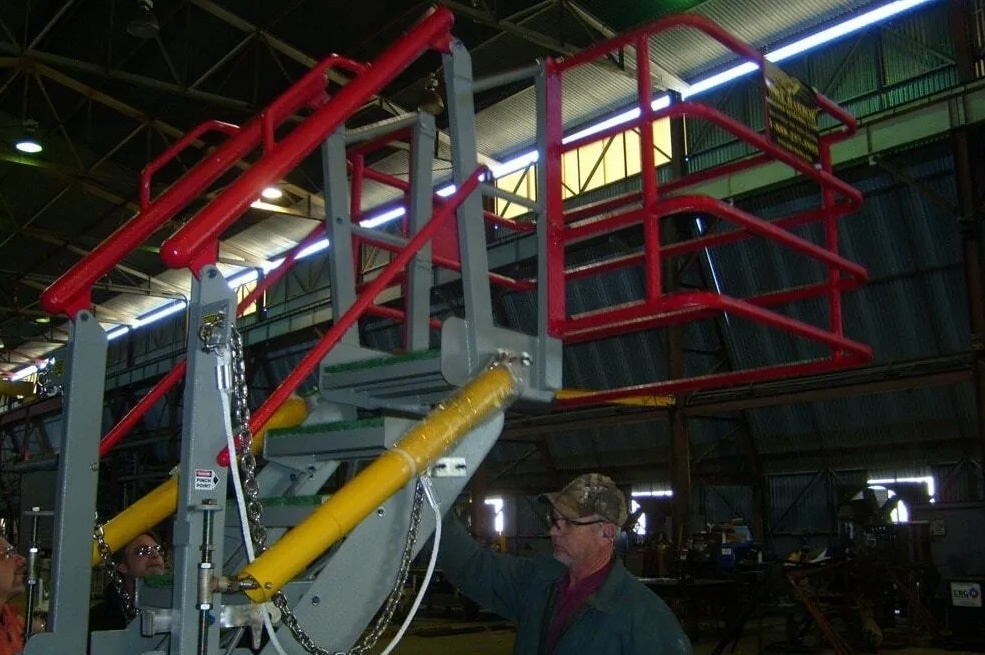

All Safe Harbor gangways feature spring counter-balance assist for easy manual operation, automatic locking in the upright position, and widths ranging from 24 to 60 inches. Each unit supports a load capacity of up to 500 lbs. to accommodate operators and emergency rescue requirements. Gangways can be track-mounted to slide horizontally along the platform face, giving workers access to multiple hatch positions without repositioning the truck.
Truck Loading Platform Applications
Our truck loading platforms and gangways support a range of day-to-day operations at your facility. Common applications include:
- Loading and unloading bulk liquids and dry goods
- Truck inspections prior to transport
- Preventative maintenance on hatches and fittings
- Opening or venting hatches before product transfer
- Top- or bottom-hose connection hookups.

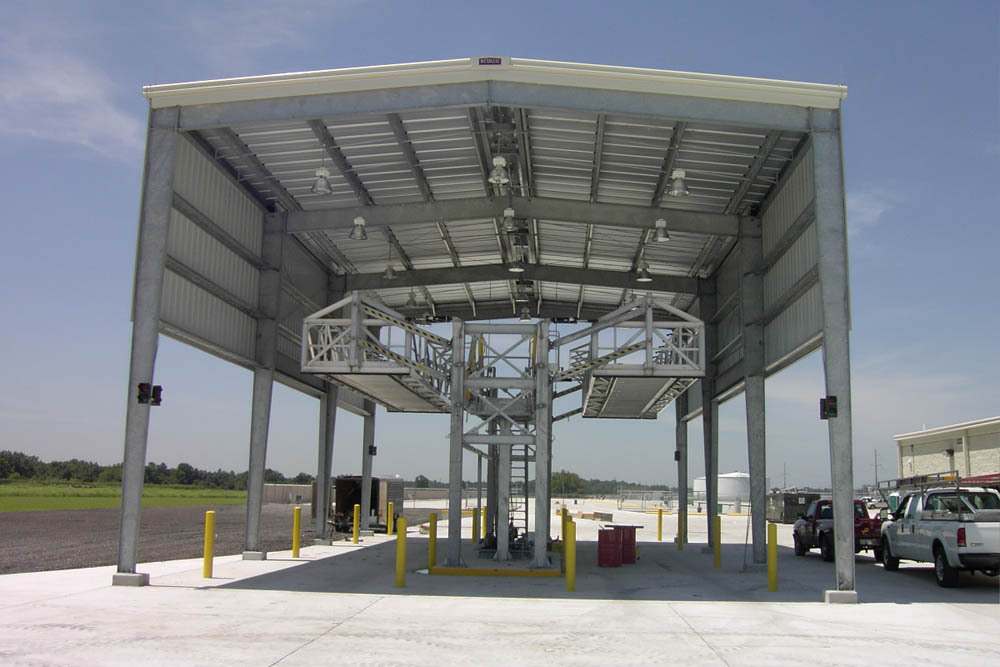

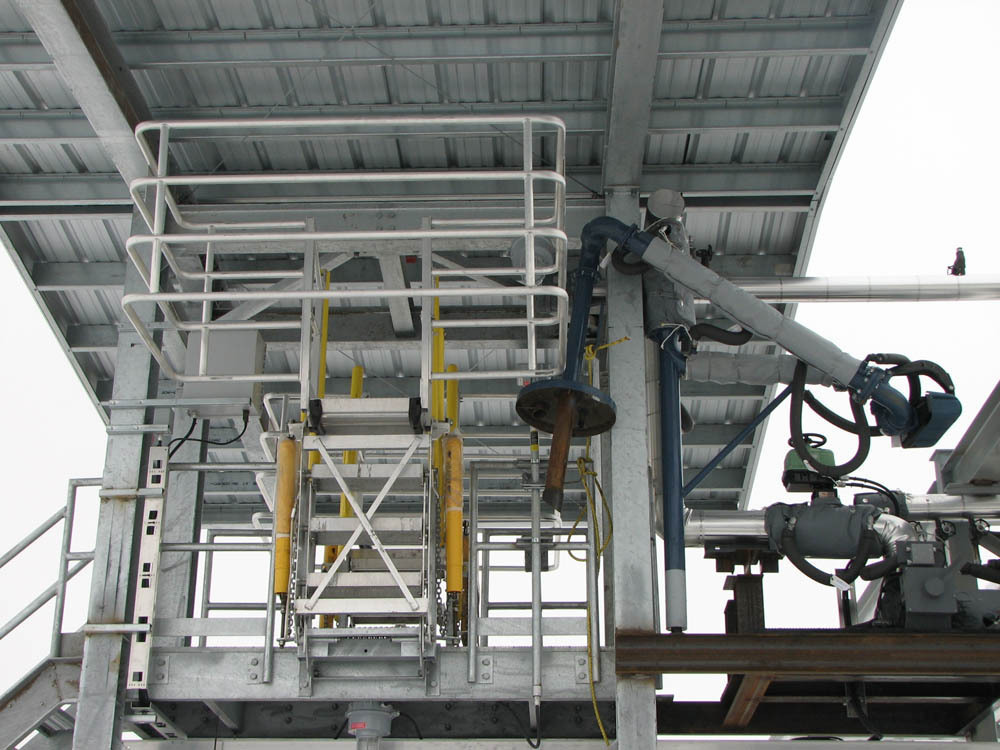

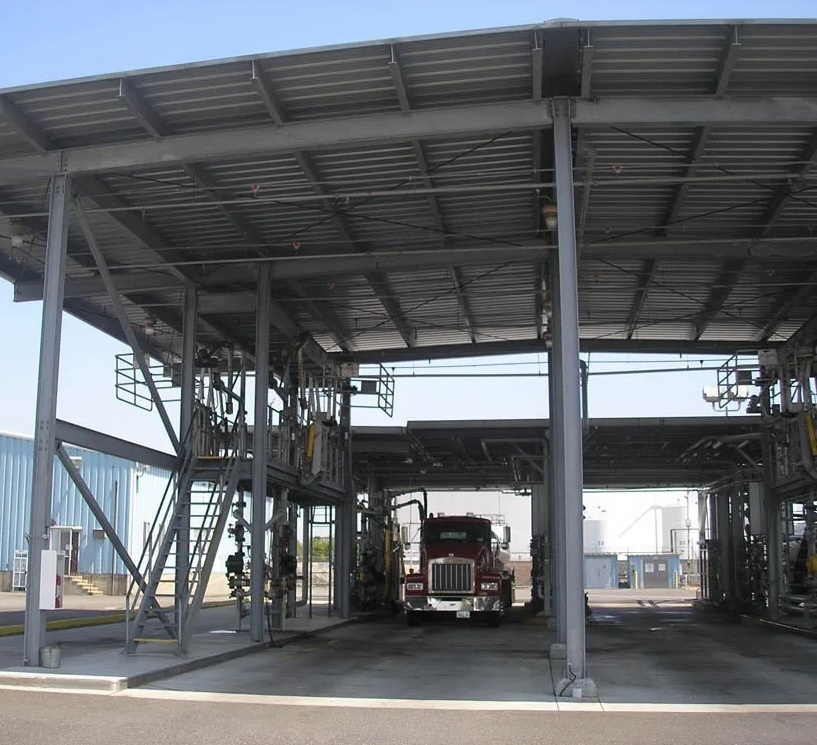

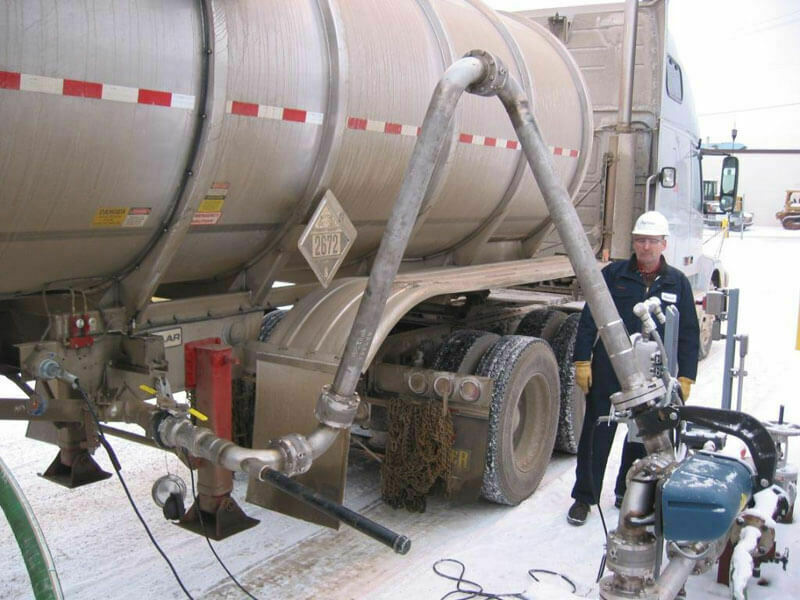

Truck loading platforms can also be aligned with loading arms, canopies, and pneumatic or hydraulic systems that lower and raise gangways, transfer augers, and interface with related equipment at the loading bay.
Fully Customized Trucking Safety Solutions

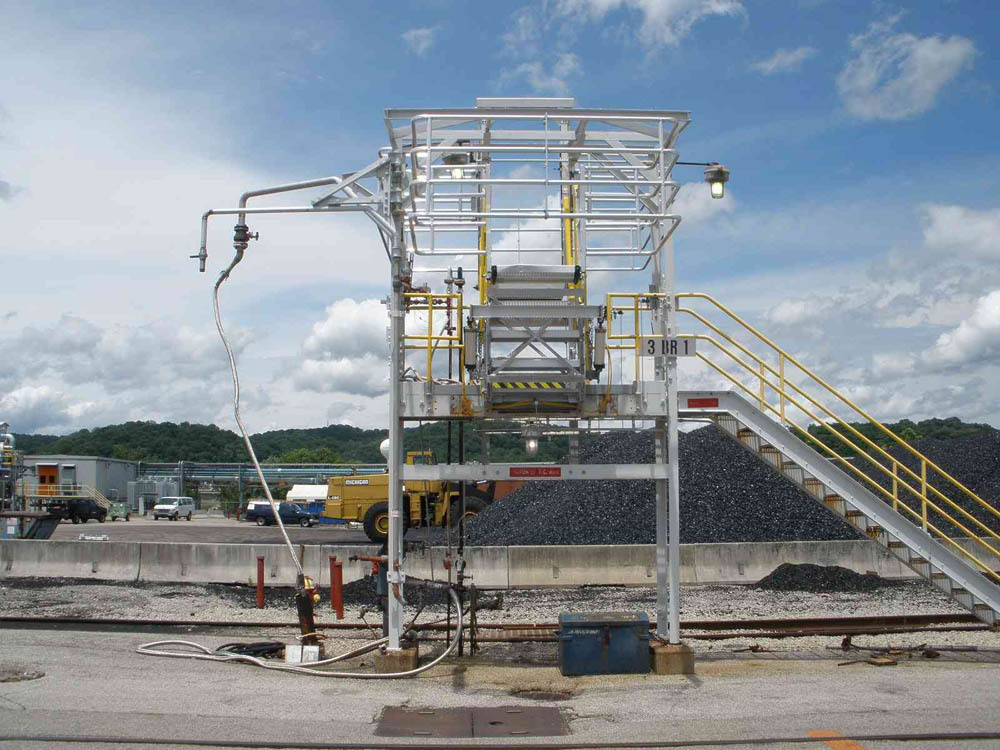

No two facilities handle trucks the same way, which is why every Safe Harbor truck loading platform is custom-engineered. Our design staff can modify and customize platforms to meet the dimensions and weight requirements of any tank truck your operation services.

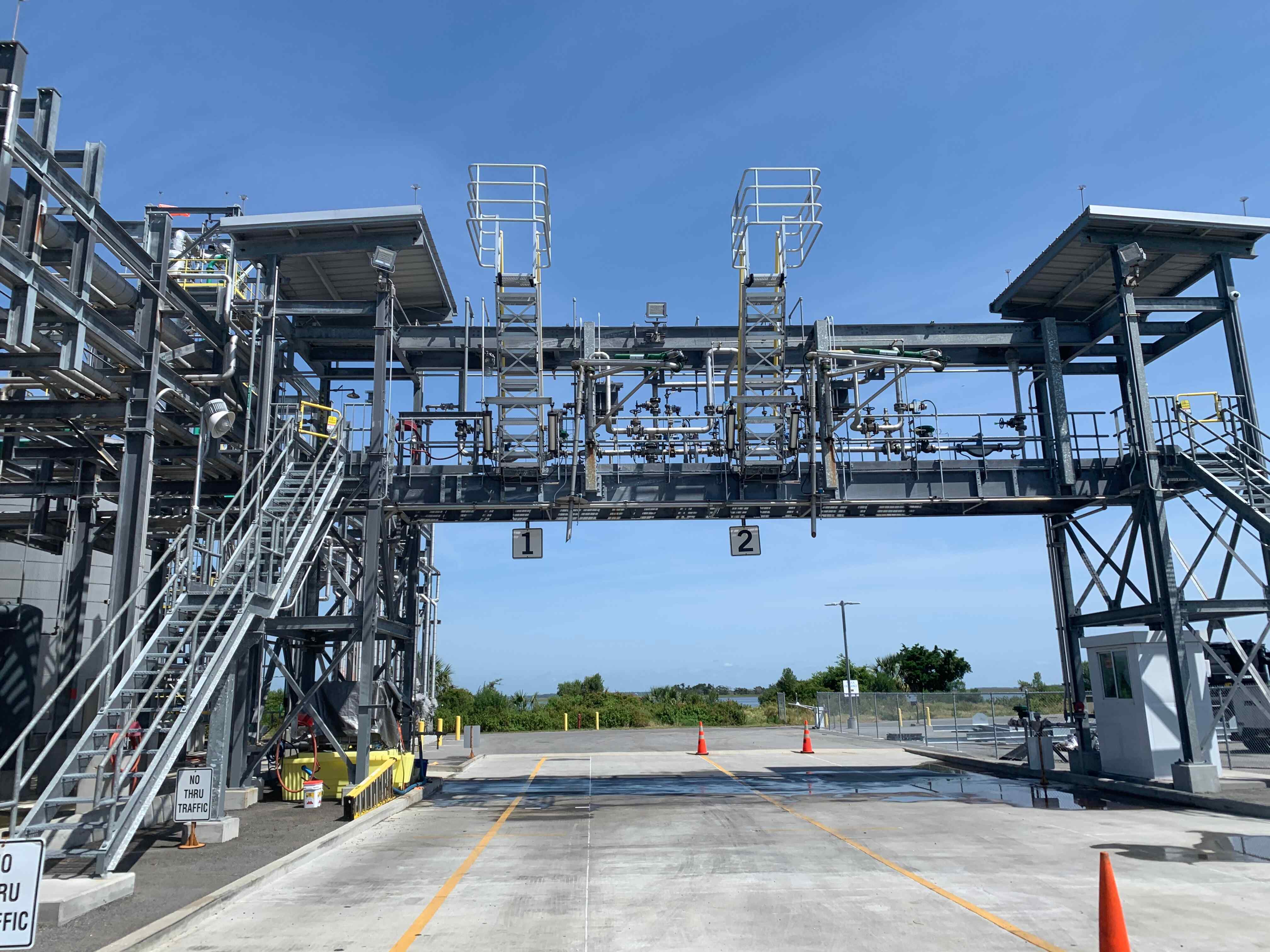

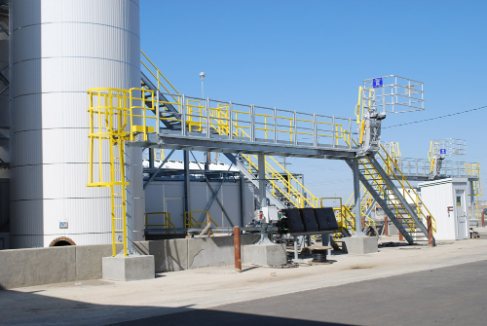

For facilities that need multi-hatch access, we design retrofit systems and new-build solutions that improve productivity while meeting OSHA fall prevention regulations. Components can include single or multiple gangways, platforms, safety tread stairs, canopies, handrails, and standard or extended safety cage systems for maximum fall protection.

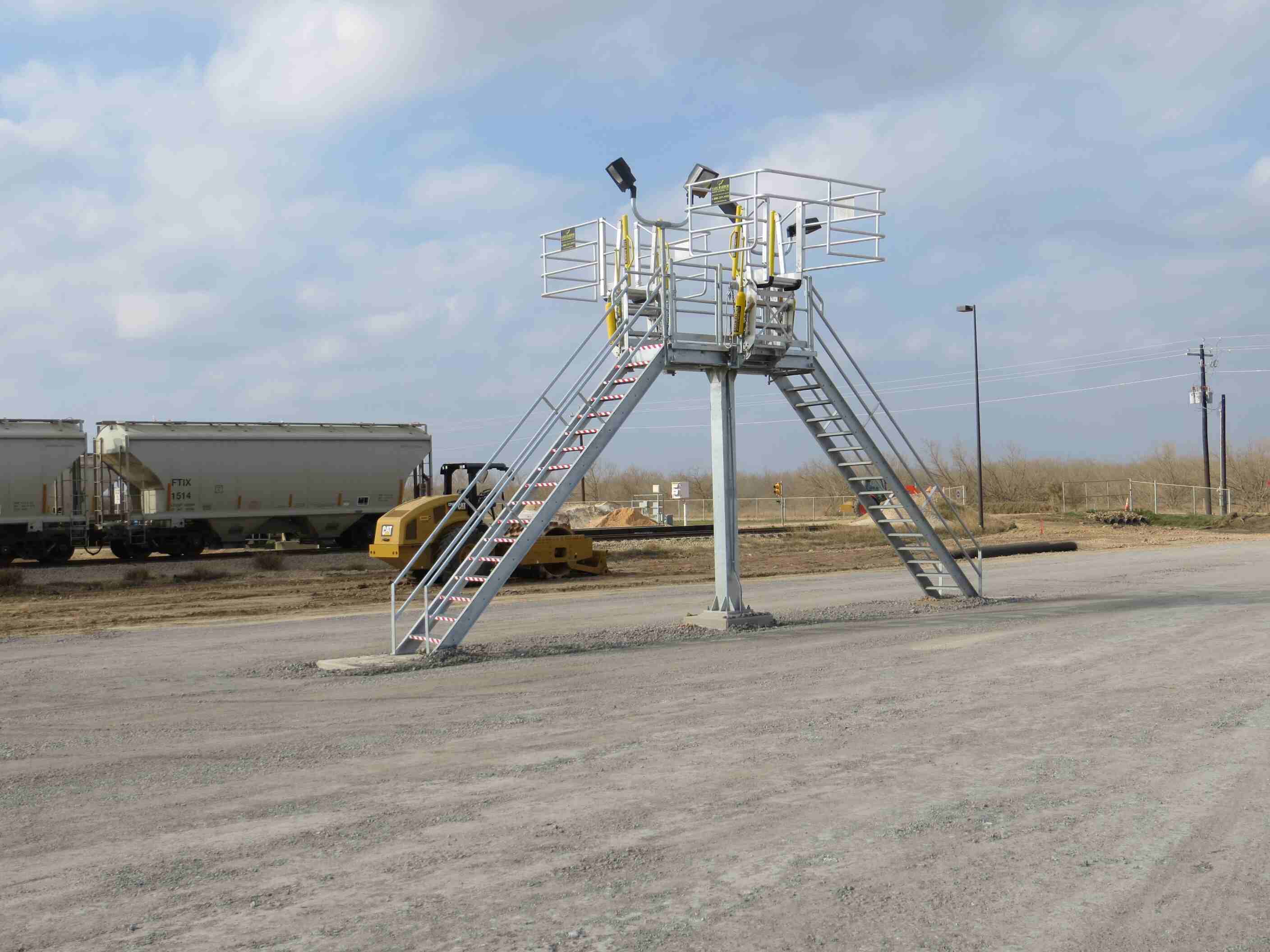

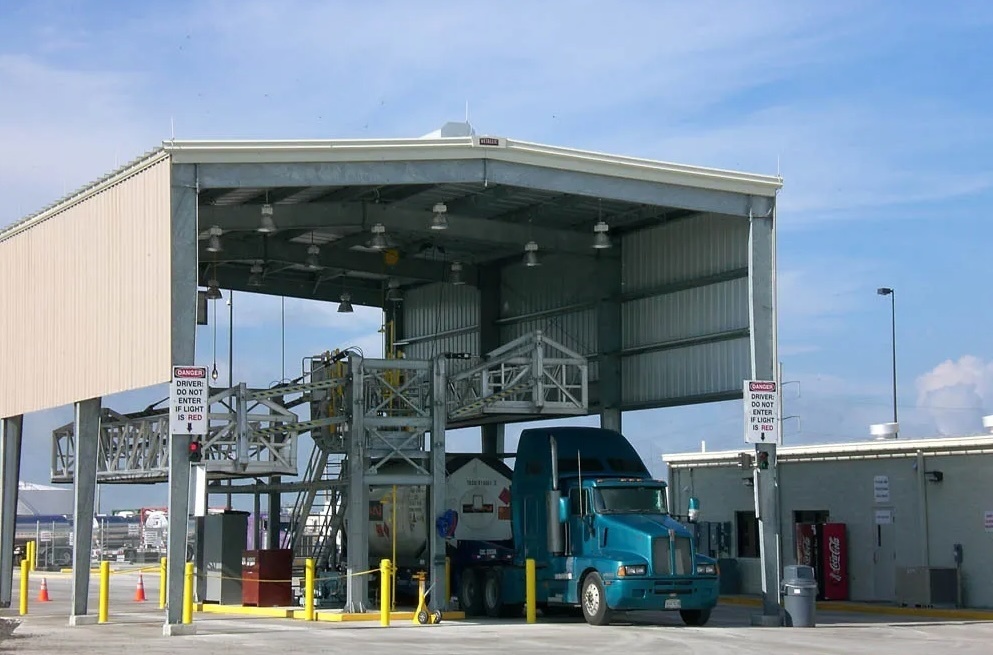

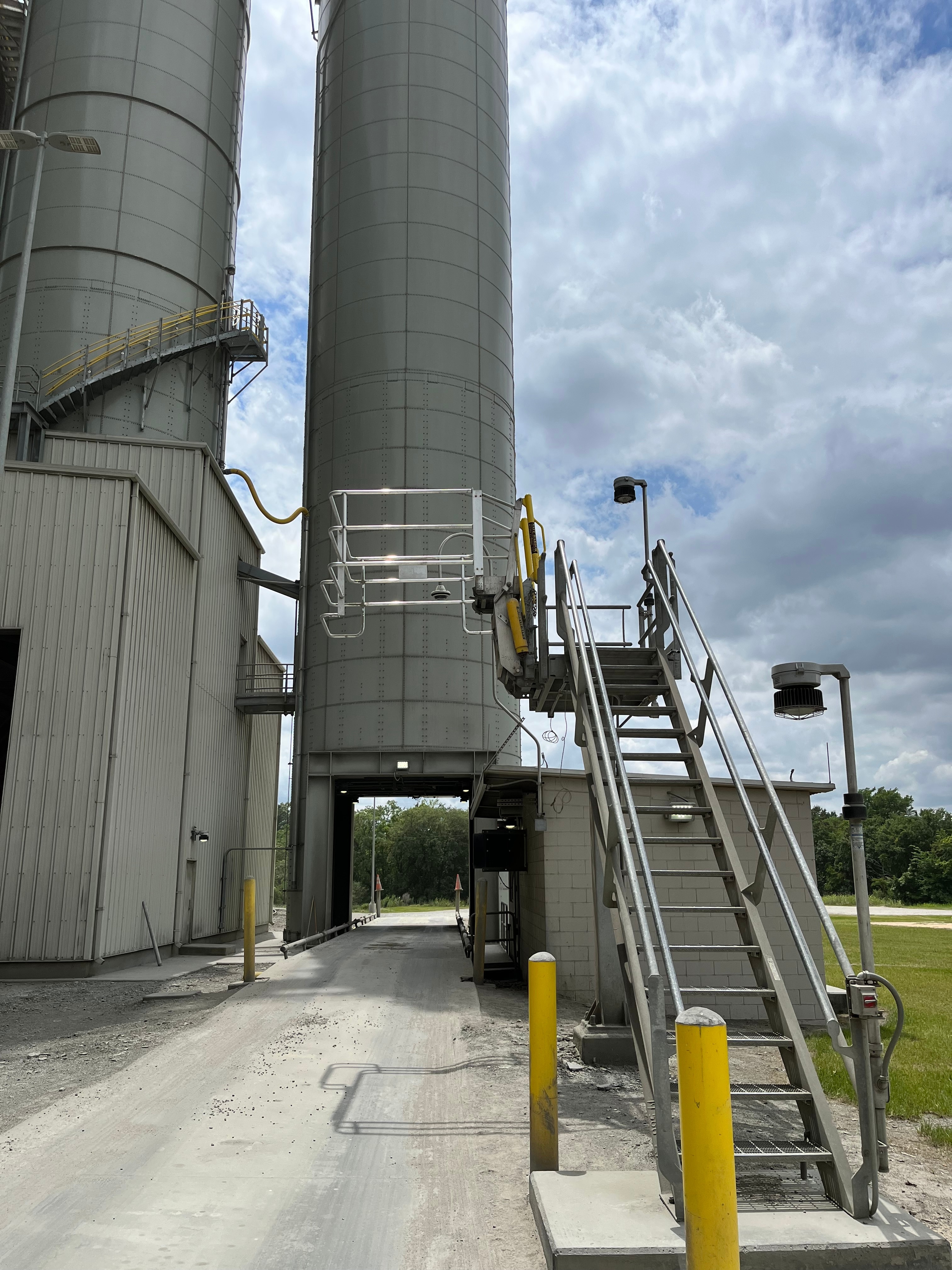

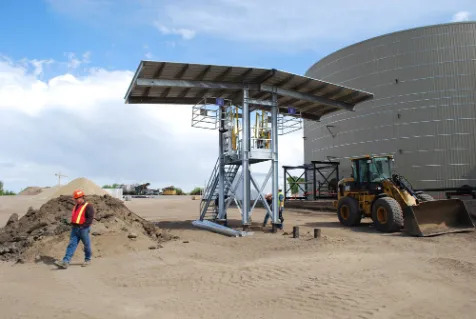

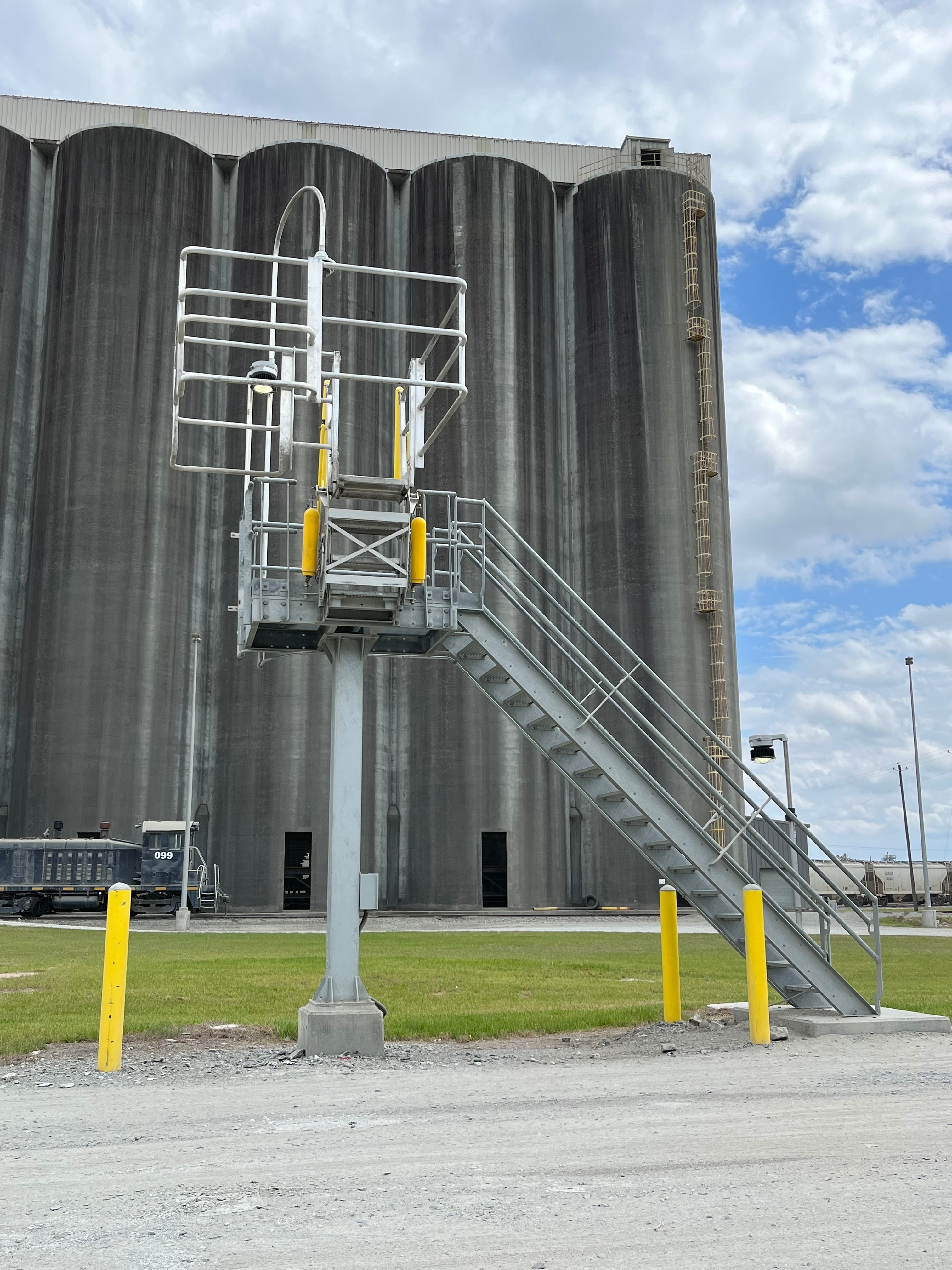

We also offer elevated handrail systems, track-mounted gangways, elevating truck platforms, full truck enclosures, and single pedestal or tower support designs, depending on your site footprint and traffic flow requirements.
Quality Assurance
Safe Harbor truck loading platforms and truck fall protection systems are designed and manufactured with worker safety as the top priority. We build every system to meet and exceed OSHA Regulations and Standards, specifically OSHA General Industry Fall Protection Standard 29 CFR 1910, including OSHA 1910.23 and 1910.28. Railings, access ramps, stairs, gangways, posts, and safety enclosures for the trucking industry are all created with fall protection in mind.
Our manufacturing facility in Florence, SC, gives us full control over materials, fabrication, and quality testing from start to finish. That means every truck loading platform that leaves our shop has been verified against the engineering specifications your project demands.
Call Safe Harbor for a FREE on-site safety evaluation.
Frequently Asked Questions
OSHA General Industry Standard 29 CFR 1910.28 requires employers to provide fall protection for workers on walking or working surfaces 4 feet or more above a lower level. While OSHA does not classify the top of a truck as a walking/working surface, the General Duty Clause (Section 5(a)(1) of the OSH Act) still requires employers to protect workers from recognized fall hazards when a feasible means of protection exists. Installing a truck loading platform with guardrails is one of the most effective ways to meet that obligation.
A loading platform is the fixed elevated structure that gives workers a stable standing area at the height needed to access the top of a truck. A gangway is the adjustable walkway that bridges the gap between the platform and the vehicle. Most truck loading systems include both components working together, along with safety cages or handrails, to create a complete fall protection solution.
Yes. Safe Harbor regularly designs retrofit solutions for facilities that already have a platform or loading rack in place. Our engineering team evaluates your current structure, truck fleet dimensions, and operational workflow, then designs gangways and safety components that integrate with what you already have.
The best gangway type depends on the vehicles you service. Self-leveling staircase gangways work best when truck heights vary, such as with liquid tanker trucks. Flat ramp gangways are better suited for hopper trucks with a consistent height. If you handle a mixed fleet, track-mounted gangways allow horizontal positioning to reach different hatch locations without moving the truck. Safe Harbor offers free on-site evaluations to help determine the right configuration for your facility.
OSHA requires that fall protection equipment be inspected regularly to confirm it remains in safe working condition. This includes checking structural connections, gangway pivot points, locking mechanisms, handrails, and non-slip surfaces. Safe Harbor designs its systems with durability in mind, using corrosion-resistant hardware and heavy-duty construction to minimize maintenance demands over time.
