LOADING GANGWAYS
A gangway/loading ramp is a platform or walkway that is engineered to provide safe access between a tower or platform and a truck, boat, railcar, or another type of platform. Safe Harbor's OSHA-compliant access gangways are designed for a wide range of heights and variances. Loading gangways for truck & marine loading designed for a wide range of vehicle heights. Manual, pneumatic, electrical, and hydraulic operation. Gangways can be retrofitted to your existing structure and customized to suit your specific application; which is excellent for older platforms that were not designed for today's taller railcars.
What Are the Different Types of Gangways & Loading Ramps?
- Telescoping Gangways - A loading gangway with a telescoping extension
- Flat Ramp Gangways - A loading gangways with non-slip ramp
- Self Leveling Tread Gangways - A loading gangway designed for varying heights
- Custom Gangways - A loading gangway designed to your specific needs
If you're unsure which gangway type works best for your application, our team of experts can help guide you to the perfect solution based on your industry and operating environment.

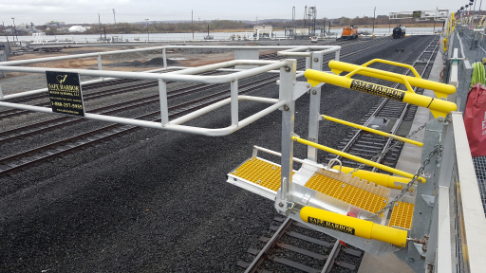

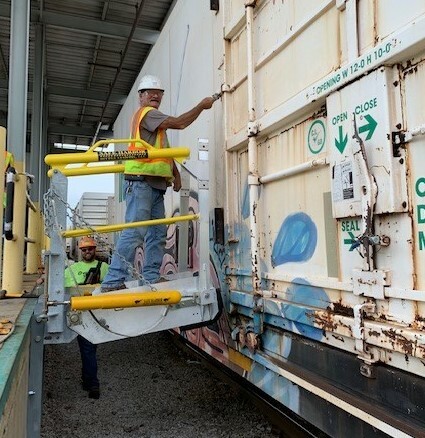

Primarily used for railcar applications where vehicle height is fairly uniform. Our telescoping extension helps to close the gap for narrow railcars.
- Working range of 15 degrees below horizontal and 15 degrees above horizontal
- Equipped with our standard 22 inch extension
- Self supporting with a 500lb. load capacity
Our FLT model is a flat ramp gangway. Primarily used for hopper car and hopper truck applications where vehicle height is uniform.
- Working range of 15 degrees below horizontal and 15 degrees above horizontal
- Self supporting with a 500lb. load capacity

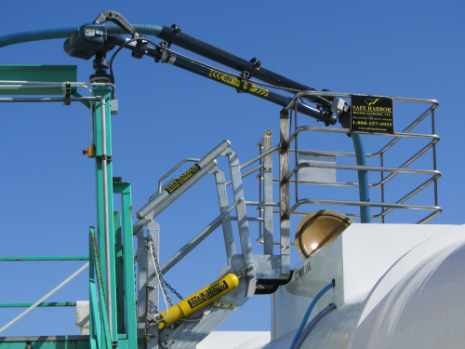

Engineered with the most versatility to accommodate variations in height that typically occur while accessing liquid tank trucks.
- Working range of 45 degrees below horizontal and 50 degrees above horizontal
- Self supporting with a 500lb. load capacity
- 4 bolt nickle plated flange bearing at the main pivot point
- Double end tread for larger operator work surface
Loading Gangway Features
Our loading gangways are engineered with durability, safety, and convenience in mind. Whether you’re accessing trucks, railcars, or marine vessels, Safe Harbor provides gangways and platforms equipped with the following features:
- Effortless Lifting: Manual units feature a spring counter-balance for lightweight, smooth adjustments.
- Durability for High-Use Environments: Built for long-lasting reliability in harsh industrial and marine conditions.
- Auto-Locking: Gangways automatically lock in an upright position using a foot-lock mechanism for added security.
- Vehicle Protection: Rugged bumpers protect trucks or railcars during operation.
- Range of Widths: Multiple gangway widths (20" to 60") cater to varying industrial needs.
- High Load Capacity: Up to 500 lbs., ensuring safety for operators and potential emergency rescue requirements.
- Safety Handrails: Pipe handrails ensure secure access for operators, maintaining OSHA safety standards.
- High-Quality Components: Stainless steel hardware and bronze oil-impregnated bushings ensure smooth operation and extended product life.
Industry Applications
Safe Harbor creates gangways for the following industries:
- Marine Gangways
- Barge Gangways
- Pharmaceutical / Pharma Gangways
- Trucking /Tanker Gangways
- Food Processing Gangways
- Mining Gangways
- Renewable Energy
- Chemical / Petrochem Gangways
Materials Offered for Gangways
Safe Harbor employs high-quality materials to fabricate gangways and loading ramps that match specific application needs. Whether your priority is lightweight convenience for portable use or corrosion resistance in harsh environments, we offer gangways made from various materials including the following materials:
- Aluminum Gangways: Lightweight, corrosion-resistant, and ideal for marine and food-grade applications.
- Stainless Steel Gangways: High durability and corrosion resistance, perfect for hazardous or outdoor applications.
- Galvanized Steel Gangways: Rugged strength and longevity for demanding industrial environments.
Aluminum Truck Gangways
For loading gangways in industrial and commercial marine settings, Safe Harbor recommends the use of marine-grade aluminum. Several benefits of aluminum truck access gangways include:
- Lightweight & durability
- Lower maintenance requirements
- Ideal for loading, unloading, and inspecting & repairing vessels
- Excellent corrosion resistance
Custom Features
No matter your safety needs, Safe Harbor will work with you step-by-step to make sure the perfect solution is engineered. We take pride in our innovative, custom gangways.
- Extended last tread for operator comfort and maneuverability
- Manual, pneumatic, electrical and hydraulic operation available
- Available in aluminum, galvanized steel, safety yellow painted steel, stainless steel or can be painted to your specifications
- Slip resistant deck span walk surface standard with optional bar grating or fiberglass treads available
Common Sizes
The Safe Harbor gangways come in a variety of standard widths from 20" to 60" available. Some of the common sizes include:
| 20" Gangway | 30" Gangway | 40" Gangway |
| 50" Gangway | 60" Gangway | Custom Gangway |
