PORTABLE TRUCK, RAILCAR, & TANKER ACCESS PLATFORM

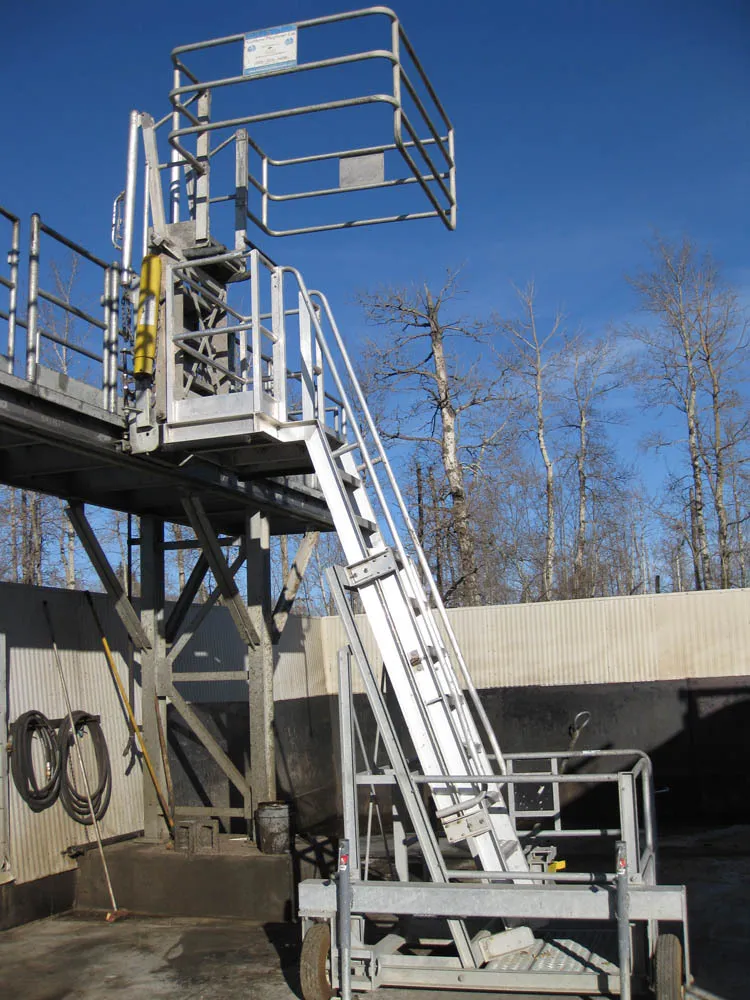

A portable truck and railcar access system, or PTA, provides fall protection and safe mobile access to the top of tanker trucks and railcars. The portable truck platforms are designed with a safety cage and stairs, and they are the ideal solution for applications where a permanent loading structure is not feasible.
Types of Portable Truck Access Systems
Safe Harbor offers two different types of portable truck access systems:
- PTA parallel
- PTA perpendicular
The PTA parallel is ideal for use in applications where multiple hatches on a truck or railcar need to be accessed. The PTA perpendicular, or PTA standard, is ideal for use where vehicles need to be safely accessed in different locations.
Parallel and Perpendicular PTA Features
Safe Harbor offers two different rolling bases and ladder heights. Choose between our standard base which offers loading capabilities for single hatch vehicles or our parallel base, for vehicles with multiple hatches.
Our Standard Base allows the operator perpendicular access to the vehicle. A perpendicular base is typically used for single hatch railcars or trucks.
STANDARD/ PERPENDICULAR APPROACH
- Portable access unit runs perpendicular to vehicle.
- Portable access units can be designed for either truck or railcar applications
- Standard portable access units have two workings ranges; 9'-6" to 13'-6" and 11'-6" to 15'-6".
- Units have an automatic self breaking winch with backup locking pins
- Ideal for use where vehicles need to be safely accessed in different locations

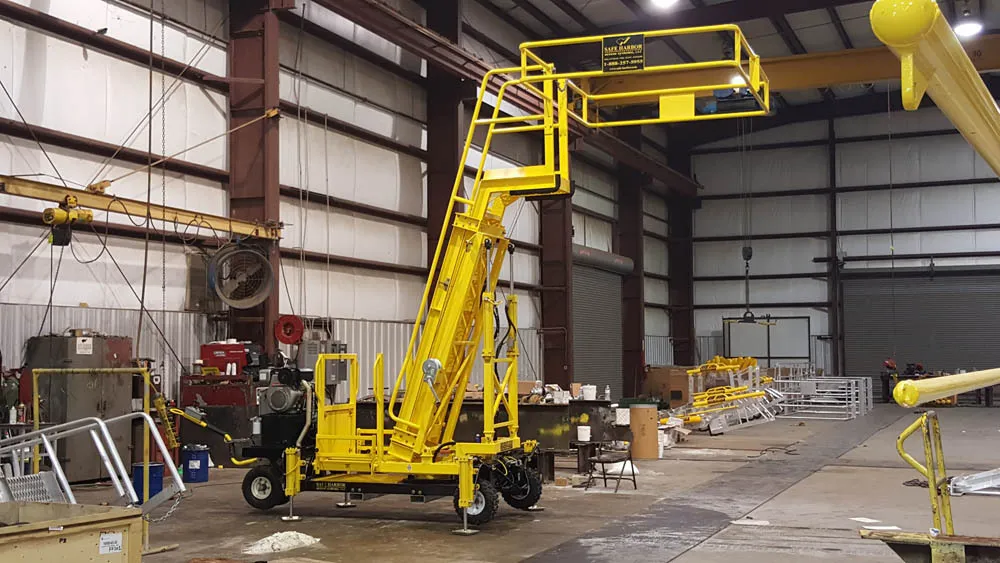

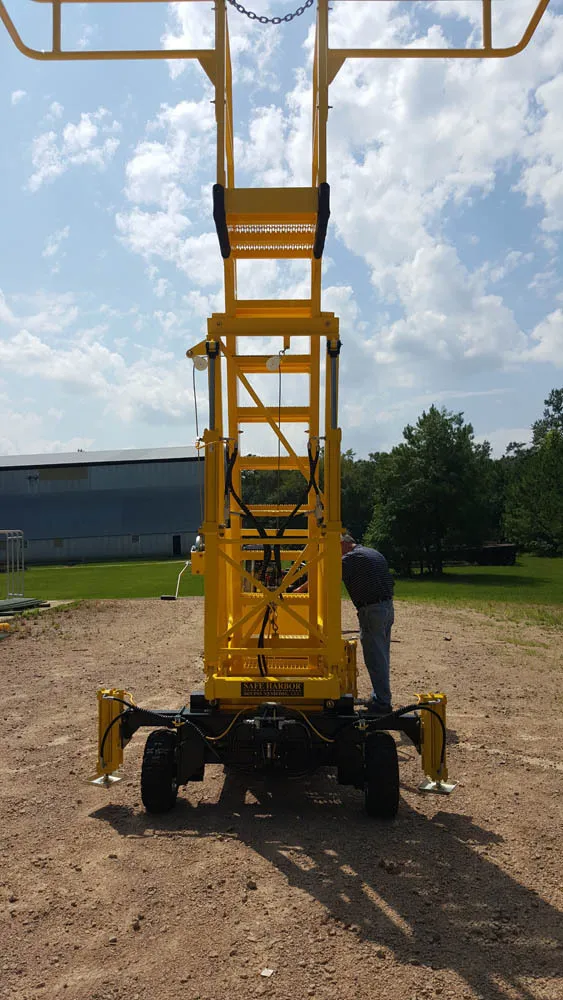

- Units can also be powered and self propelled
- Units can be designed to move with forklift pockets. Units can also be designed to be pulled behind site trucks at low speed.
Our Parallel base allows the operator to roll the system parallel with the vehicle. A paralleled base is typically used for vehicles that have multiple hatches.
PARALLEL APPROACH
- Designed for either truck or railcar applications
- Units have two workings ranges; 9'-6" to 13'-6" and 11'-6" to 15'-6".
- Units is fitted with a customized safety cage for your specific requirement.
- Portable access units are designed for effortless one person operation and are easy to maneuver

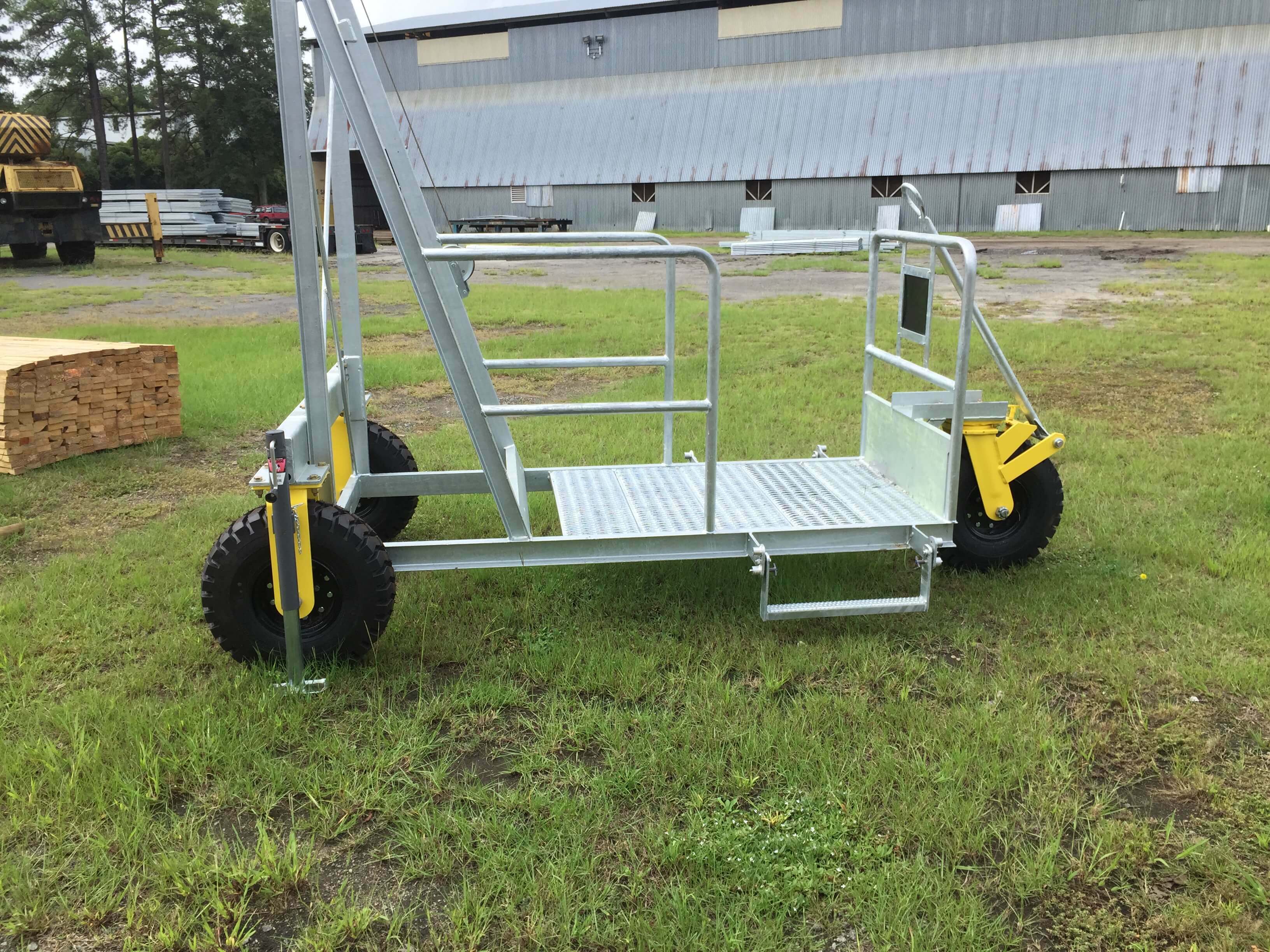

- Portable access units have 18" foam filled tires which results in portable access units that are always ready for use.
- Standard units are free standing and have a 500 LB load capacity.
- Units have self leveling jacks and wheel break for additional safety
Safe Harbor offers two different ladder heights based on the type of vehicle being accessed. Choose our standard base for single hatch applications, our parallel base for multiple hatch applications or some of our customized solutions.
Common Applications for Portable Access Platforms
The Safe Harbor Portable Access System is engineered for use with Liquid Tanker Trucks, Liquid Rail Cars, Hopper Trucks, Hopper Cars, and ISO-Tainers.

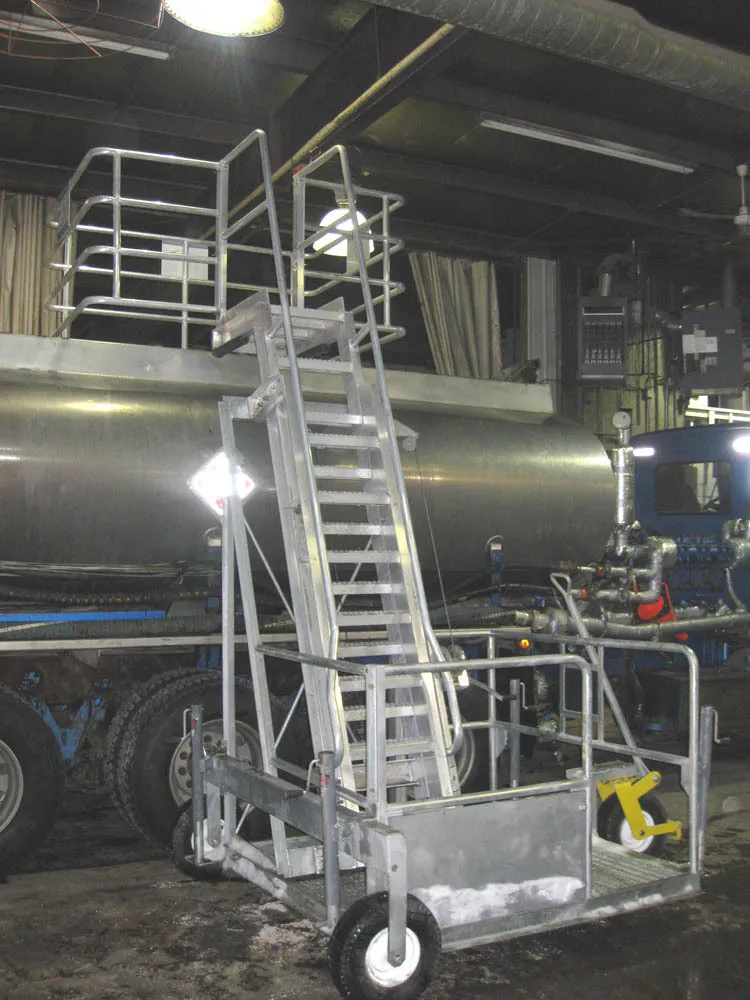

- Our PTA-14 has a working range of 9'-6" to 13'-6". The PTA-14 is typically used for accessing liquid railcars and tank trucks.

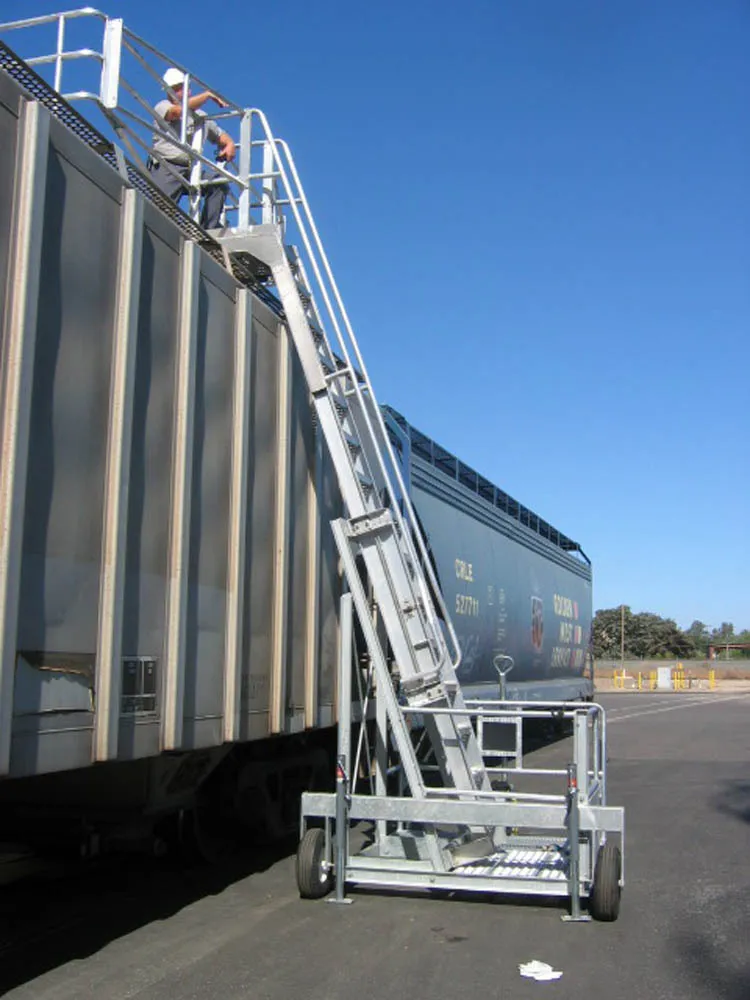

- Our PTA-16 has a working range of 11'-6" to 15'-6". The PTA-16 is typically used for accessing hopper cars and hopper trucks.
OSHA Standard Portable Truck Access Systems
Safe Harbor provides high-quality and OSHA standard portable access equipment designed to meet the fall protection industry standards and requirements. Our portable access systems will help keep your employees safe and your company up with OSHA regulations.
When Should You Consider a Portable Truck Access System?
When it comes to mobile loading, Safe Harbor's PTA platforms are the ideal solution for fall protection. In a temporary loading situation where there is a lot of movement, portable access platforms give the strength, durability, and safety that all of our permanent platforms offer. A few things to consider are:
- Do your loading areas provide adequate fall protection for your operators at all times?
- Do you have a need to be able to unload a tanker, truck, or railcar in a remote area that currently does not have a loading rack?
- What happens if your typical loading spot is not operational and you can't load or unload product due to damaged fall protection equipment?
If any of these scenarios apply to your company then Safe Harbor has the solution. Safe Harbor's Portable Access System provides fall protection for your operators on a portable platform.
